Series WAP – The fully fledged window panel
More info:

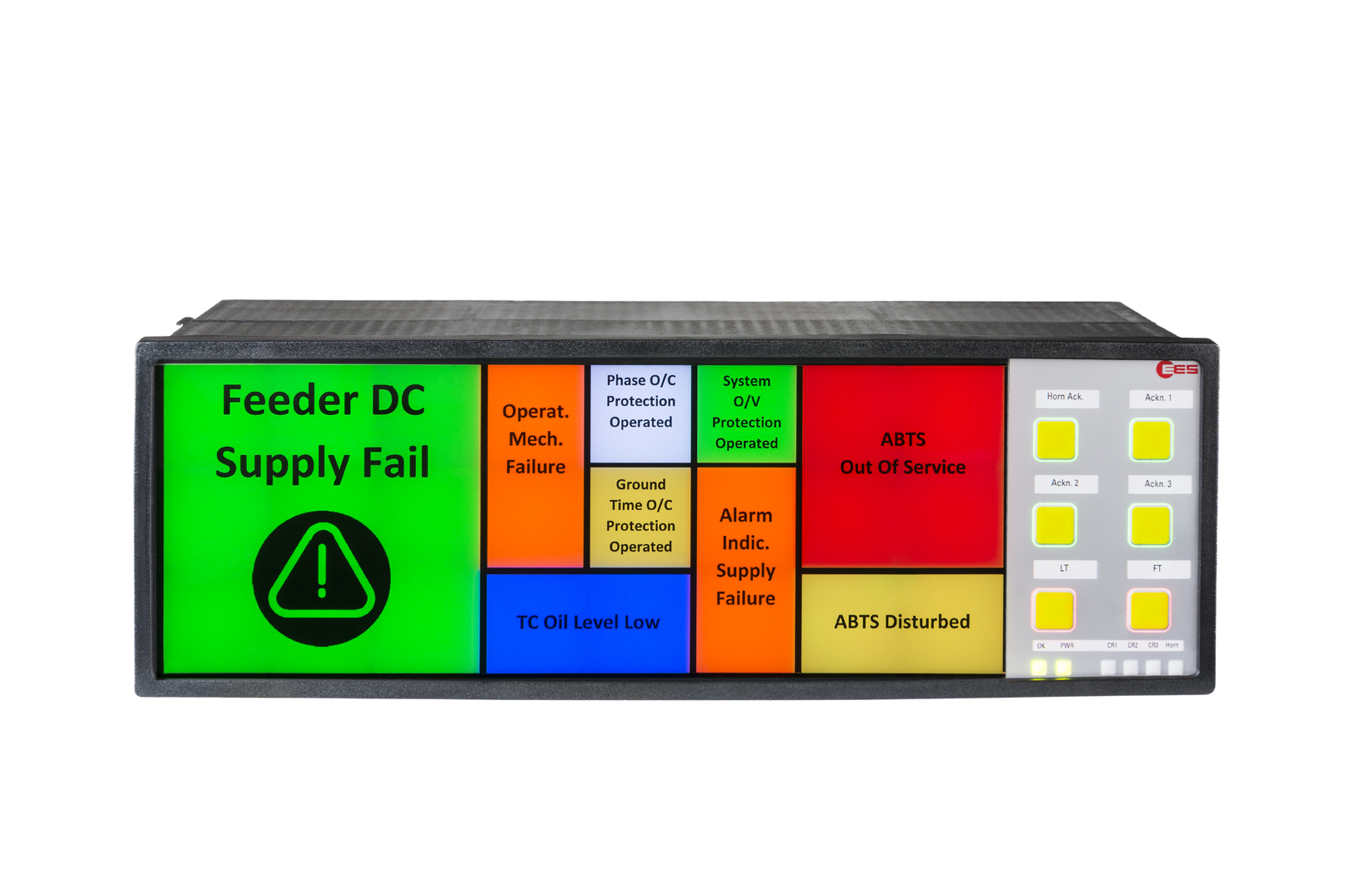

The Window Annunciator Panel WAP provides up to 24 alarms with a window-size of 28×28 mm within an ultra-compact housing. For bigger applications, the WAP can be expanded. Size and colour of the windows can be freely confgured and different variants are available for signal and supply voltages from 24 – 220 V AC/DC.
• Ultra compact design with 24 inputs – window size 28×28 mm
• Up to 4 devices cascadable – up to 96 inputs
• Integrated repeat relays as option (triggerable also over IEC 61850)
• Redundant power supply optionally
• Window sizes and colours as well as input processing completely parameterisable by Web-Server
• IEC 61850 / 60870-5-104 via RJ45 or optical fber
• Status LED for operation, collective reports, horn and power supplies
• Illuminated push-buttons for guided operation
• Mute and unmanned functionality
Omniflexibility – Design your colour for good, alarm flashing and acknowledged state. Drag and drop your
windows to your defined size. No fumbling – No hassle!
The WAP Annunciator comprises 24 highly conf gurable inputs in different variants from 24-220 V AC/DC.
The size of each window can be enlarged individually. The labelling for each window is adapted automatically to the window size. Labelling texts can be entered and printed out from the parameterization interface.
The essential advantage of our backlit design is that no mechanical changes are necessary to modify the window appearance. The individual size and colour of any window can be parameterized by browser easily by yourself on-site. For commissioning and putting into service any device from stock can be used. Adjustments can be done on site with your customer. Only a printer is needed to print out the dynamically generated frame setting and labeling foil.
Save time and changes.
